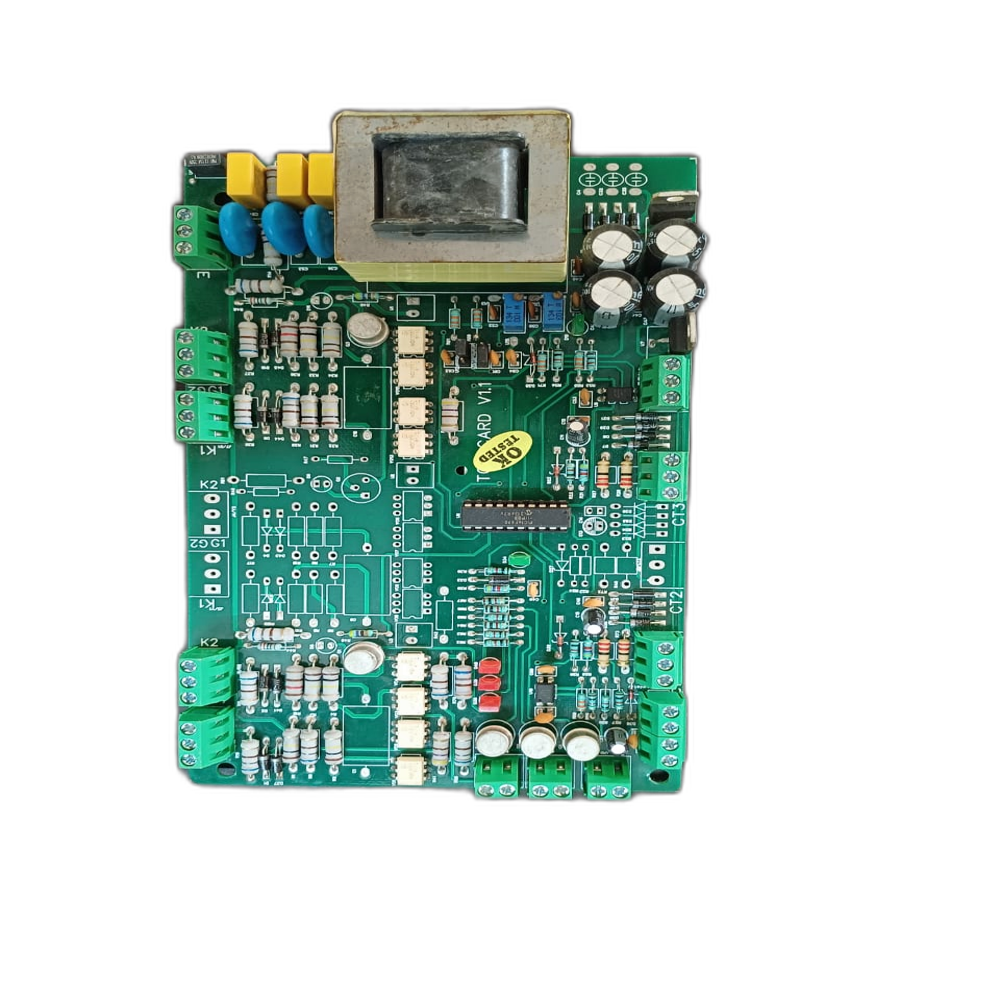

SCR Switching Card

Price 4500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

About SCR Switching Card

We are having more than 20 years of design experience and are specialize in all kind of Electronics and Embedded circuits designs in Microcontroller, Analog and Digital circuits, Power Systems, APFC Relays, SCR Switching Boards, IGBT Switching Boards, Motor Control Boards, SBC circuits, IoT sensor nodes, gateways, battery-powered handheld devices, wearables, BLE & WiFi devices, wireless products, sensors, AI & ML processors, motor drivers and controllers, power systems, boards etc. Our expertize is in electronics circuit design services with a schematic design to final product. This includes selecting relevant electronic components based on the product requirements already present in the product requirements document. Additionally, we elaborate circuit design with actual electronic connections based on functional diagrams.

We do development from concept to final product.

Experience working on Atmel, PIC, STM32, Nordic, and other Microcontrollers.

Reliable Industrial Switching Solution

This SCR Switching Card provides a robust solution for demanding industrial applications such as heater, motor, and lighting control. Its solid-state, SCR-based design ensures dependable operation even under harsh conditions. Optical isolation enhances safety, while reliable fuse protection and advanced short circuit safeguards secure your devices during operation.

Flexible Compatibility and Easy Integration

Designed for seamless integration, the switching card supports TTL/PLC-compatible control logic and standard 24V DC input signals. Its modular, rack or panel-mount configurations allow for fast setup in control panels and industrial racks. Screw terminal or plug-in connectors speed up installation and maintenance without sacrificing durability.

Clear Monitoring and Simplified Maintenance

LED indicators for each channel offer instant visual feedback on operational status, streamlining monitoring and troubleshooting. The enclosure, available in metal or robust ABS plastic, helps protect internal components from dust and moisture, ensuring long-term reliability. Operating across a wide temperature range and in high-humidity environments, this card suits almost any industrial setting.

FAQ's of SCR Switching Card:

Q: How does the LED indication benefit channel monitoring on the SCR Switching Card?

A: Each channel is equipped with a dedicated LED indicator, allowing users to quickly assess the status of every connection at a glance. This feature minimizes downtime by simplifying troubleshooting and ensuring effective channel management in busy industrial environments.

Q: What protection mechanisms are built into the SCR Switching Card?

A: The card includes built-in fuse protection, as well as overload and short circuit safeguards. These protective features help prevent damage to the connected equipment and enhance the safety and reliability of your industrial automation systems.

Q: When should you use an SCR Switching Card for industrial applications?

A: An SCR Switching Card is ideal for applications that require robust AC switching and precise circuit control, such as heater control, motor operation, and lighting management. Its reliable solid-state design and multi-channel capacity make it suitable for continuous or demanding operational scenarios.

Q: Where can the SCR Switching Card be installed within industrial systems?

A: This card is designed for flexible installation options, suitable for both rack mounting and panel mounting. Its enclosure resists environmental factors, making it ideal for varied locations within industrial facilities, including control panels and automated machinery housings.

Q: What process is followed to connect input and output signals to the card?

A: Inputs are connected via 24V DC or logic signals compatible with TTL or PLC standards. Outputs are accessed through screw terminals or plug-in connectors. Clear markings on the enclosure guide correct wiring, ensuring quick and safe connections for both installation and maintenance.

Q: How does optical isolation improve reliability in control circuits?

A: The optically isolated design separates input and output circuits electrically, preventing unwanted interference and protecting sensitive control logic from voltage spikes and surges-a crucial benefit in industrial environments with high electrical noise.

Q: What are the main benefits of using a solid-state SCR-based switching card over traditional relays?

A: Solid-state SCR relays offer improved longevity, faster response times (<20 ms), and silent operation compared to mechanical relays. They also provide enhanced protection against electrical wear and deliver consistent performance in high-humidity, high-temperature contexts.
